TOOLING & MOLD DEVELOPMENT
Silicone Mold Tooling & Development for Custom Components
SM develops production molds for custom silicone components, connecting drawings or samples with DFM, machining, trial molding and the manufacturing process that follows.
The mold defines more than part shape. Parting, demolding, visible surfaces, mating features and finishing areas all influence how the tool needs to be built.
Send the information you already have and we can identify the key manufacturing inputs before mold development begins.
Drawing • DFM • Tooling • Trial • Production
PRODUCTION TOOLING
Production Tooling Connects Design With Production
For a custom silicone part, the mold is the physical link between the design and the repeatable molded component.
It determines cavity geometry, separation surfaces, demolding behavior and many of the details that later affect appearance, fit and finishing.
Built Around the Finished Part

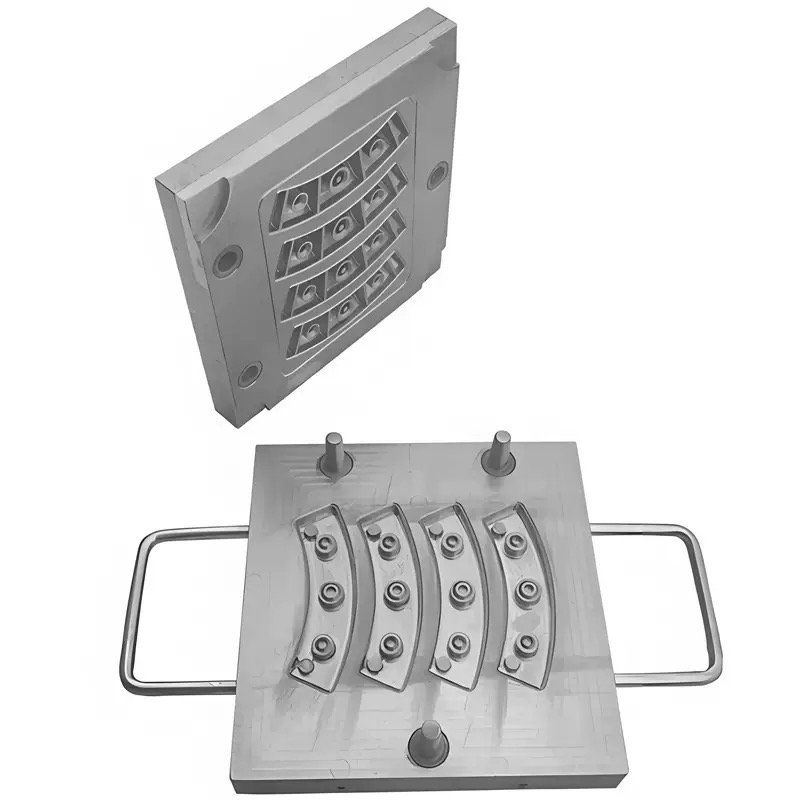

A keypad, button component and functional silicone part may use the same general molding process while requiring very different mold structures.
Geometry, critical surfaces and assembly interfaces need to guide the design rather than forcing every part into one standard layout.
Connected to Molding and Finishing
The mold also needs to support what happens after the part leaves the press.
If a component requires printing, coating, laser marking or assembly, the molded surface and locating features need to work with those downstream operations.
Part Design
↓
Production Tooling
↓
Molded Component
PROJECT INPUT
Start With Drawings, Samples or Assembly Information
A tooling discussion can begin from several types of input. The goal is to separate what is already defined from what still needs confirmation.
CAD & Drawings
Current 2D drawings or 3D data provide the clearest geometry and revision reference.
Mark critical dimensions, appearance-sensitive surfaces and features that control fit or function.
Existing Samples
A physical sample can support reverse-development work when original CAD is unavailable.
It provides useful geometry and appearance reference, but key dimensions and material expectations still need to be identified wherever possible.
Mating Parts
If the silicone component fits into a housing, frame or other assembly, provide the mating part or relevant interface dimensions.
This helps focus the mold design on the features that control alignment and fit.
Finishing Details
Printed legends, coating areas, laser marks and other visible details need to be known before the mold is treated as complete.
DESIGN FOR MANUFACTURING
Key DFM Inputs Before Mold Development
The most efficient time to catch a manufacturing issue is before machining starts.
A focused DFM check identifies the features that affect mold construction, part release, appearance and inspection before machining begins.
Geometry & Parting
Overall shape, recesses, flexible sections and raised features influence how the mold separates.
If one face is especially visible, identify it early so the parting strategy can account for it.
Demolding & Undercuts
Silicone flexibility helps with release, but deep recesses, locking features and fragile sections can still create demolding risk.
Critical Dimensions
Highlight the dimensions that control fit, alignment, movement or other functions.
This keeps mold development and later inspection focused on the right features.
Surface & Appearance
Texture, gloss, matte finish and visible parting traces can matter as much as dimensions on interface components.
Define appearance-sensitive areas before sample approval.
Material Context
If silicone type, hardness or other material requirements are already defined, include them with the design.
Dimensional behavior depends on the material system and process, so one generic shrinkage value should not be applied to every part.
Legends & Finishing
Printing, coating, laser engraving and UV printing require suitable molded surfaces and clear marking areas.
Those needs are easier to support when they are known before steel is finalized.
Mating Components
Assembly data or mating parts can expose fit issues that are difficult to see from the silicone part alone.
Quantity Context
Expected demand provides context for cavity strategy and production planning, but quantity alone should not decide the mold structure.
MOLD STRATEGY
Defining the Mold Strategy
Once the key inputs are clear, the part can be translated into a practical mold structure.
There is no universal cavity count or layout that is correct for every silicone component.
Mold Structure
Plates, inserts, cores and locating features are selected around the geometry and molding route.
Cavity Strategy
Cavity arrangement should balance expected demand, part control and overall tool complexity.
Parting & Shut-Off
Separation and shut-off areas influence flash, edge quality and visible surfaces.
Venting
Air needs a controlled path out of the cavity during molding. Vent locations depend on the actual geometry.
Surface Definition
The tool surface becomes the molded surface. Appearance targets need to be clear before the sample becomes the reference.
Adjustment Access
Some sample corrections require controlled machining or insert changes. Practical access makes those changes easier to manage if they become necessary.
TOOLING WORKFLOW
From DFM to Production Release
01
Project Input
Collect the latest drawing, sample, mating information and known finish requirements.
02
DFM & Mold Direction
Identify parting, release, critical geometry and any open manufacturing questions.
03
Tool Design
Prepare the mold structure around the confirmed component and process route.
04
Machining
Machine cavities, inserts, plates and supporting features according to the approved design.
05
Fitting
Assemble and prepare the mold so its components locate and operate together correctly.
06
Trial Molding
Run the mold in the intended molding process and evaluate an actual part.
07
Sample Confirmation
Check geometry, appearance, fit and any finishing or assembly interfaces that matter to the application.
08
Production Release
After required corrections are closed and the sample is accepted, the mold can enter the approved production route.
MACHINING & FITTING
Machining and Tool Development
SM supports CNC machining and EDM as part of mold development, with the machining route selected around the tool geometry and required features.The exact machining route depends on the mold geometry and the details that need to be produced.
CNC Machining
CNC machining can create mold plates, cavities, inserts and other tool features from the approved design.
EDM Where Geometry Requires It
EDM can support details that are difficult to machine efficiently with conventional cutting alone.
It is used when the geometry makes it appropriate, not as a required step for every mold.
Fitting & Finishing
Machined parts still need to function as a complete mold.
Fitting, surface preparation and controlled adjustment turn individual metal components into a working production tool.
TRIAL & SAMPLE CONFIRMATION
Trial Samples Turn the Tool Into a Production Baseline
A mold is best judged by the part it produces.
The first trial turns the tooling design into a real silicone component that can be checked against the drawing, mating parts and agreed appearance target.
Geometry & Dimensions
Confirm the features and dimensions that are critical to the application.
Demolding & Parting
Check how the part releases and whether parting-related areas meet the intended result.
Appearance & Finishing
Confirm visible surfaces and make sure marking or coating areas support the planned secondary process.
Fit & Function
Where possible, evaluate the silicone part together with the components it interfaces with.
Controlled Adjustment
If the trial identifies a meaningful issue, document the change against the current design and adjust only the features that need correction.
The accepted sample and current drawing then become key references for production.
PROCESS CONNECTION
Tooling Must Match the Compression-Molding Route
Production molds are developed for a manufacturing process, not in isolation.
For SM compression-molded components, the mold needs to support material loading, curing, part release and the geometry required by the finished product.
Molding Interface
Parting, cavity geometry and demolding features need to work with the compression process.
Secondary Finishing
Printed, coated or laser-marked areas need suitable molded surfaces and usable locating references.
Inspection Priorities
Critical dimensions and appearance zones need to be defined early enough that mold development and later part inspection follow the same priorities.
TOOL VALIDATION
Validate the Tool Through the Molded Part
Tool validation is based on the molded part, not the appearance of the mold alone.
The molded sample shows how well the tool translates the approved design into the actual component.
Molded Sample
Use the actual part to confirm the mold is producing the intended geometry.
Critical Dimensions
Check the dimensions that control fit or function against the current drawing.
Appearance
Review visible surfaces, parting-related areas and other agreed cosmetic points.
Fit / Function
Where relevant, check the component with mating parts or the intended assembly.
The accepted sample, drawing and documented criteria form the basis for production release.
PROJECT INPUTS
What to Send for a Silicone Tooling Quote
You do not need every detail finalized before the first discussion.
Send what is available and clearly identify any open decisions.
Drawing / CAD
Provide the latest 2D or 3D file and revision information.
Existing Sample
If CAD is unavailable, send photographs and a physical sample where practical.
Application & Mating Parts
Explain where the part is used and provide surrounding components or interface data when fit matters.
Material & Quantity Context
Include material or hardness requirements if known, plus expected order quantity or annual demand.
Finishing & Critical Features
Identify printing, coating or marking needs and highlight the dimensions, surfaces or functional areas that require the most attention.
FAQ
Frequently Asked Questions About Silicone Mold Tooling
What information do you need to quote silicone mold tooling?
A current drawing or 3D file is ideal. If those are unavailable, an existing sample, photographs and application information can still support an initial assessment. Include quantity context, known material requirements, finishing needs and critical dimensions.
Can SM start from an existing sample?
Yes. A physical sample can provide geometry and appearance reference when original CAD is unavailable. Critical dimensions, material expectations and any intended design changes still need to be identified separately.
Does mold development include DFM?
The work includes assessment of geometry, parting, demolding, visible surfaces, finishing areas and critical dimensions as they relate to the mold and manufacturing route.
Can the mold be adjusted after the first trial?
If sample evaluation identifies a specific issue, the modification route can be assessed. Feasibility depends on the feature and the existing mold structure.
How is the parting line decided?
Parting is chosen around geometry, release, visible surfaces, flash-sensitive areas and practical mold construction. There is no single layout that fits every silicone component.
How do you handle silicone shrinkage?
Dimensional change depends on the material system and process conditions. Mold development needs to consider the actual material and trial result rather than using one generic shrinkage value for every part.
Do you use CNC and EDM for silicone tooling?
SM’s documented mold-development capability includes CNC machining and EDM. The machining route is selected according to the geometry and tool structure.
What happens after the sample is approved?
Once required corrections are closed and the agreed sample is accepted, the mold can move into the approved production route. The current drawing and accepted sample remain key references.
START YOUR TOOLING PROJECT
Have a Drawing, Sample or Existing Part?
Send the information you already have.
SM can assess the component, define the mold route and connect tooling development with trial molding and production.
