PLASTIC MOLDING CAPABILITY
Custom Plastic Injection Molding for Interface & Assembly Components
SM supports custom plastic injection molding for buttons, housings and related components, connecting part design with tooling, molding, sample confirmation and downstream assembly.
This capability is especially relevant when plastic parts need to work with silicone keypads, buttons or other molded interface components.
Start with a drawing, 3D file or existing sample so the key manufacturing inputs can be defined before mold development.
DFM • Tooling • Molding • Assembly • Inspection
PROCESS OVERVIEW
Plastic Injection Molding for Custom Components
Plastic injection molding forms a component by delivering molten material into a closed mold, allowing the part to cool before release.
For custom work, part design and tooling need to be considered together. Geometry, release direction, visible surfaces, mating features and assembly details all influence the manufacturing route.
Built Around the Part
A viable design needs to mold cleanly, release from the tool, meet its appearance targets and fit the final assembly.
DFM and tooling decisions therefore belong close to the beginning of the process.
Connected to Silicone & Assembly
SM’s plastic capability also supports components that work alongside molded silicone parts.
Buttons, housings and interface structures may need to align with keypad geometry, locating features or other assembly details.
Planning these interfaces together helps reduce avoidable fit problems later.
Part Design
→
Injection Tooling
→
Molded Plastic Part
COMPONENT FIT
What Types of Plastic Parts Can SM Support?
SM focuses this capability on custom interface and functional parts rather than a broad commodity-plastics catalog.
Buttons & Keycaps
Plastic buttons and keycaps may require defined geometry, surface appearance and fit with silicone or mechanical interfaces.
Housings & Covers
Housings and covers can include locating features, openings, bosses and visible surfaces that affect molding and assembly.
Interface Components
Custom plastic parts can support controls, user-interface areas and surrounding structures used with silicone keypads or buttons.
Custom Functional Parts
For drawing-led or sample-led components, manufacturing starts with the actual geometry, function, appearance and mating interfaces.
DESIGN FOR MANUFACTURING
Key DFM Inputs Before Injection Tooling
DFM focuses on the features that influence filling, cooling, part release, appearance and fit before mold development begins.
Wall Sections & Transitions
Large changes in section thickness can affect how a plastic part fills and cools.
Important transitions need to be assessed in the context of the selected material and geometry rather than through one universal rule.
Draft & Part Release
Faces that move against the mold during ejection need a practical release direction.
Texture, depth and geometry influence how the part leaves the tool.
Ribs, Bosses & Undercuts
Ribs, bosses and reverse features can add function while also affecting mold complexity and ejection.
The design needs to preserve required function without creating unnecessary manufacturing difficulty.
Parting & Gate Areas
Parting and gate locations can influence visible marks, filling behavior and surface appearance.
Appearance-sensitive areas need to be identified early.
Critical Dimensions
Highlight the dimensions that control fit, alignment or function.
This keeps tooling and inspection focused on the features that matter most.
Cosmetic Surfaces
Visible surfaces may need additional attention to texture, gate location, ejector marks and other molding-related appearance points.
Mating Components
If the plastic part fits with silicone, another plastic component or a larger assembly, provide the mating geometry where practical.
Material & Quantity Context
If the material is already specified, include it with the drawing.
Expected demand provides context for tooling and production planning, but quantity alone does not determine the molding route.
PROJECT WORKFLOW
From Drawing or Sample to Injection-Molded Part
01
Project Input
Provide the current drawing, CAD data, sample, application information and known finish requirements.
02
DFM
Identify release issues, critical dimensions, visible surfaces and key assembly interfaces.
03
Tooling Direction
Define the mold approach around the confirmed component and production route.
04
Mold Development
Prepare and machine the mold components required for the approved design.
05
Trial Molding
Run the mold and produce physical parts for evaluation.
06
Sample Confirmation
Check dimensions, appearance, fit and other agreed features.
07
Production
After the sample is accepted, the component moves into the approved production route.
08
Finishing / Assembly
Where required, molded parts continue through related finishing or assembly steps.
TOOLING CONNECTION

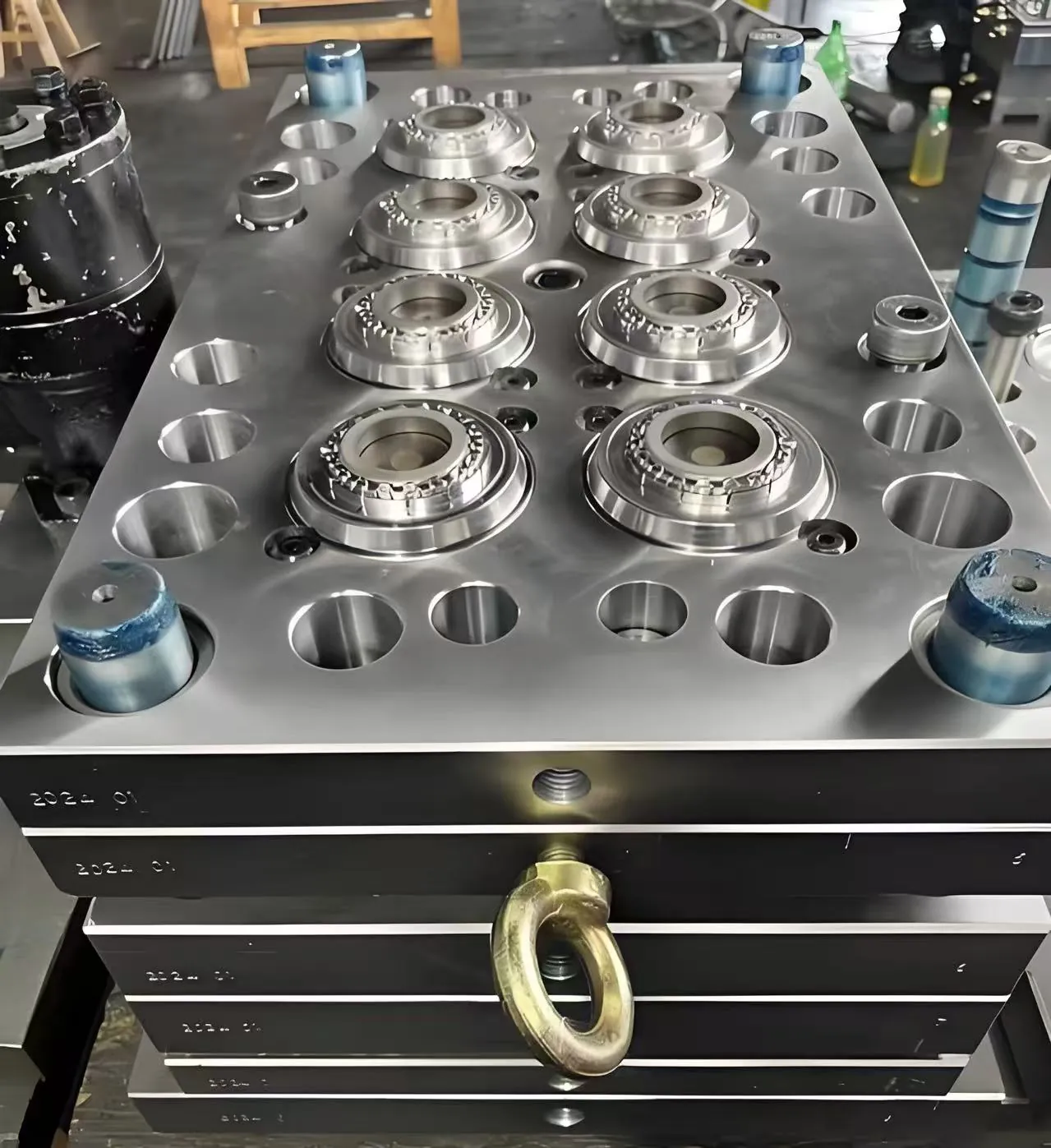

Tooling and Plastic Injection Molding Work Together
Injection tooling is developed around component geometry, release direction, visible surfaces and the production route.
Mold Structure
Mold plates, cavities, inserts and moving features depend on the geometry and manufacturing method.
Part Release
Ejection needs to work with the shape, draft, undercuts and visible areas.
Surface & Gate Location
Gate and surface decisions influence appearance as well as molding behavior.
Tool Adjustment
Trial parts may identify a feature that needs controlled correction before the sample becomes the production reference.
MATERIAL CONTEXT
Material Requirements Start With the Application
Material selection begins with the part’s function, appearance, operating environment and assembly context.
Functional Requirement
Define what the component needs to do: support, locate, flex, protect or interface with another part.
Appearance & Color
Include color, texture or cosmetic expectations where they are already defined.
Assembly Context
The selected material needs to work with the surrounding product, including silicone or plastic mating components.
Customer-Specified Material
If a specific plastic material or grade is already approved, include that information with the drawing and quotation request.
SAMPLE CONFIRMATION
Sample Validation Before Production
The first molded sample turns the CAD design into a physical component that can be checked before production release.
Dimensions
Confirm the dimensions that control fit and function.
Appearance
Check visible surfaces, gate-related areas and other cosmetic points against the agreed target.
Fit & Assembly
Test the component with mating silicone or plastic parts where possible.
Functional Features
Confirm buttons, locating features, bosses, clips or other geometry that affects the assembly.
Controlled Correction
If a specific issue is found, document the required change and correct only the affected feature.
The accepted sample and current drawing then become production references.
SECONDARY OPERATIONS
Finishing and Assembly After Molding
When plastic and silicone parts form one interface assembly, molding, finishing and fit need to be considered together.
Printing / Marking
Graphics, legends or markings can be planned where the component and approved process require them.
Surface Appearance
Visible parts may require defined color, texture or other appearance targets.
Silicone + Plastic Assembly
Plastic buttons, housings or support parts may need to align with molded silicone components.
Fit and locating features are best confirmed during sample evaluation.
Related Secondary Work
Where applicable, the manufacturing route can include approved secondary steps required by the finished component.
QUALITY PLANNING
Inspection Focused on the Finished Component
Production inspection checks the finished component against the current drawing, accepted sample and agreed criteria.
Critical Dimensions
Check dimensions that control assembly, alignment or function.
Appearance
Evaluate visible surfaces against the accepted reference.
Fit
Confirm the component works with its mating parts where required.
Function
Check relevant functional geometry in the intended assembly context.
PROJECT INPUTS
What to Send for a Plastic Injection Molding Quote
You do not need every detail finalized before the first discussion.
Useful inputs include:
- current 2D drawing or 3D CAD
- existing sample, if applicable
- part application
- material requirement, if already specified
- color / appearance requirement
- expected quantity or demand context
- mating components
- finishing or assembly needs
- critical dimensions or functional areas
FAQ
Frequently Asked Questions About Plastic Injection Molding
What information should I send for a plastic injection molding quote?
A drawing or 3D file is the best starting point. If CAD is unavailable, an existing sample and application information can support an initial assessment. Include material, quantity, appearance and assembly information where known.
Can SM start from an existing plastic sample?
Yes. A sample can provide geometry and appearance reference when CAD is unavailable. Please identify critical dimensions or intended design changes where possible.
Does SM support tooling for plastic injection molded parts?
Yes. SM’s mold-development capability supports the tooling stage for custom molded components. The mold direction depends on part geometry and the manufacturing route.
What design details matter most before tooling?
Key topics include wall sections, release direction, undercuts, parting, gate-sensitive surfaces, critical dimensions and mating components.
Can plastic parts work with silicone keypads or buttons?
Yes. Fit, locating and assembly interfaces can be considered when plastic and silicone components work together.
Do I need to choose the plastic material before requesting a quote?
Not always. If a material is already specified, include it. If it is still open, describe the required function, appearance and assembly environment.
What happens after the first molded sample?
The sample is checked against the drawing and agreed criteria. Required corrections are documented before the accepted sample becomes the production reference.
Can finishing or assembly be included after molding?
Depending on the component, relevant finishing and assembly steps can be included in the manufacturing route.
START YOUR PROJECT
Have a Plastic Part, Drawing or Existing Sample?
Send your drawing or sample so we can assess the molding route, tooling and assembly interfaces.
Email your project information to
service@zynsil.com
